Got a new punch laser combo machine?
To quote for it in SecturaFAB, you'll need to set up the operation to calculate the cost and price of items in the quote. You can do this via Quick Add.
Want to watch an example? Play the video to follow along with these setup steps.

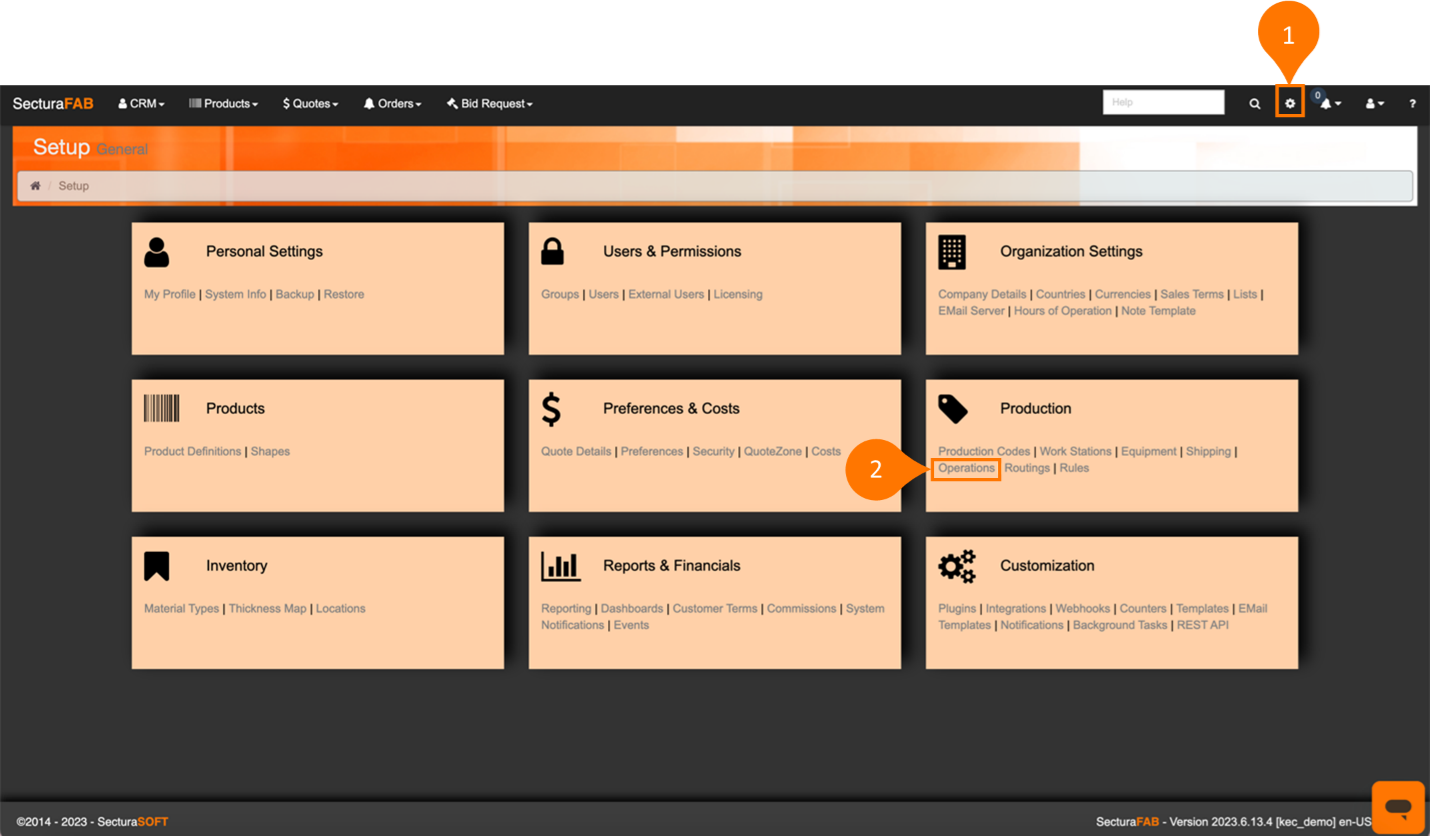

1. Select the setting icon. Then, choose "Operations" from the Production options.
2. Select "Quick Add."

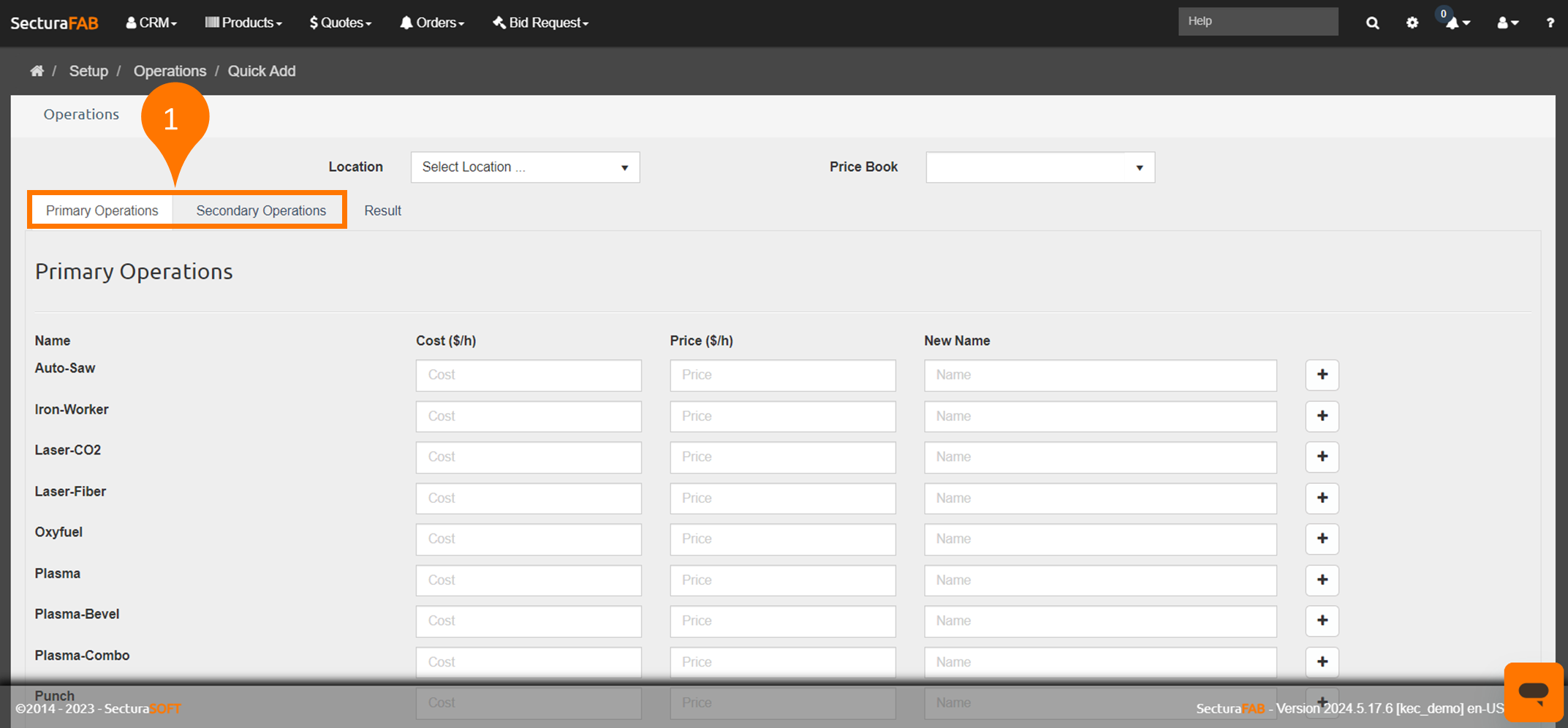

3. Decide whether to add a Primary or Secondary Operation.
- Primary Operation: The first operation applied to an item in a quote, often the cutting operation.
- Secondary Operation: Added after the part is created, such as bending, grinding, or painting.

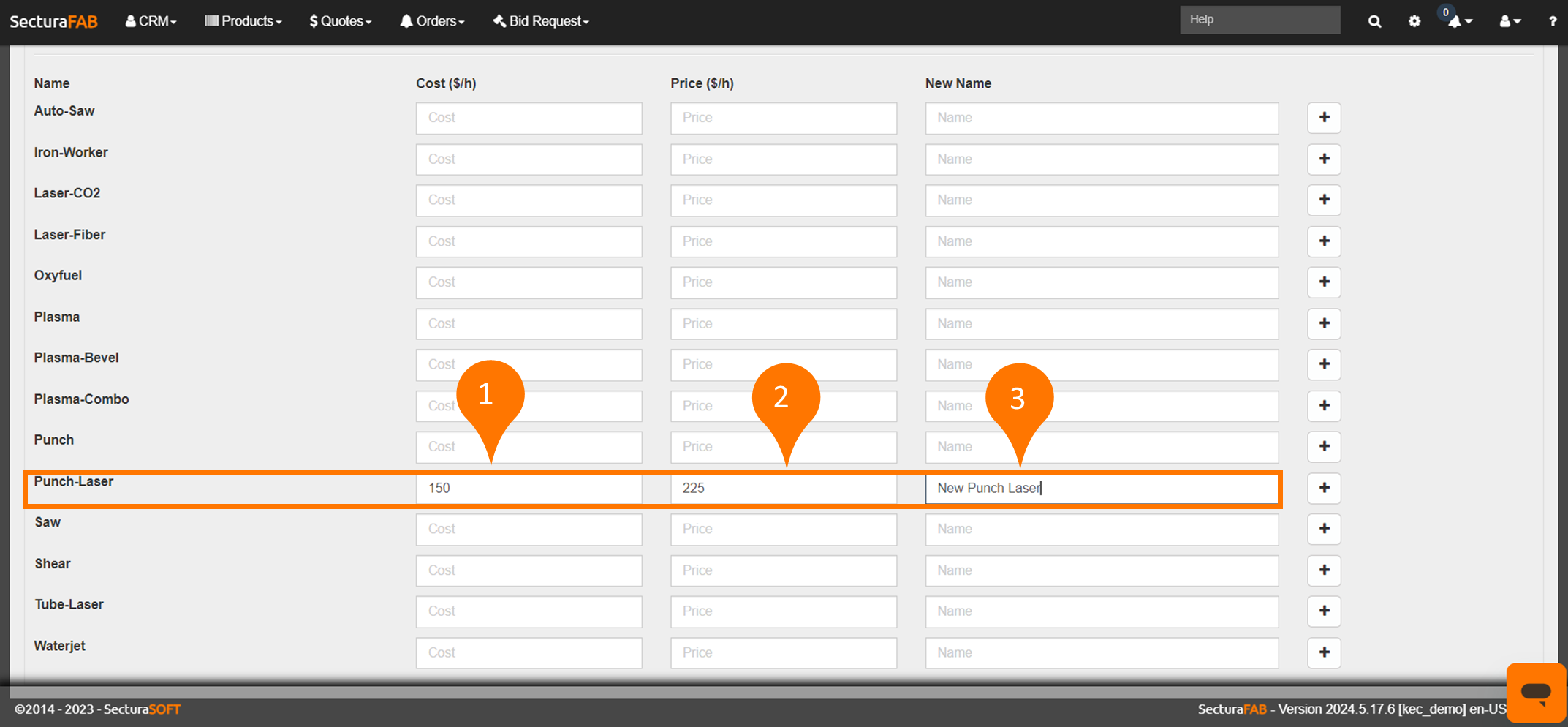

4. Enter the cost per hour, price per hour, and a recognizable name for the operation.

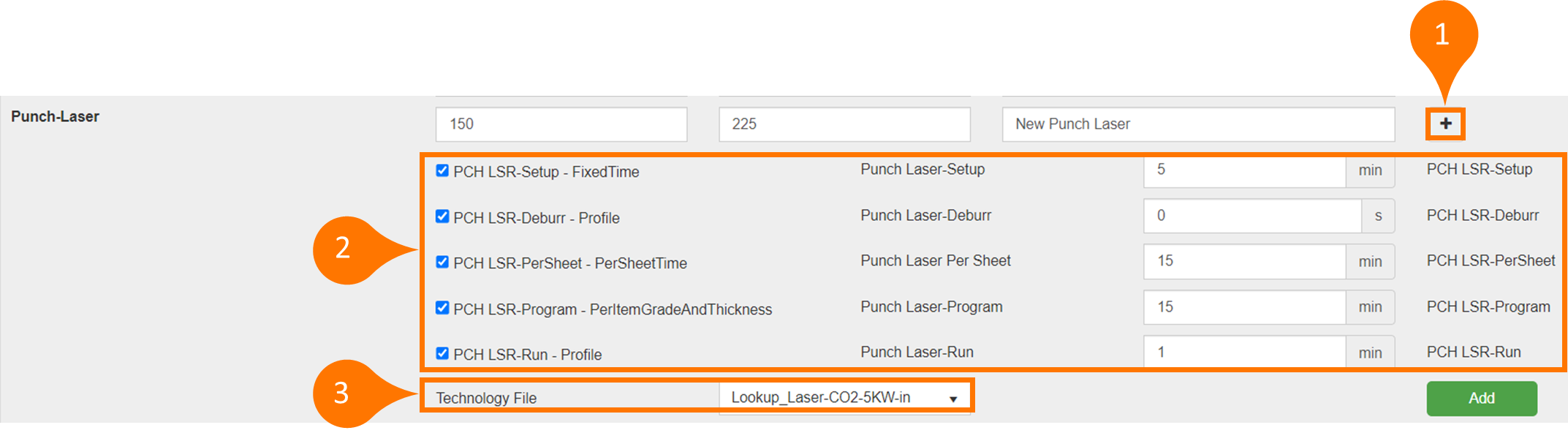

5. Select the plus sign to create operation calculators. Use the checkboxes to include or remove variables such as sheet change time, setup time, and program time. For profile types (example: PCH LSR-Deburr, PCH LSR-Run), connect to the tech table and leave the laser run field unchanged.

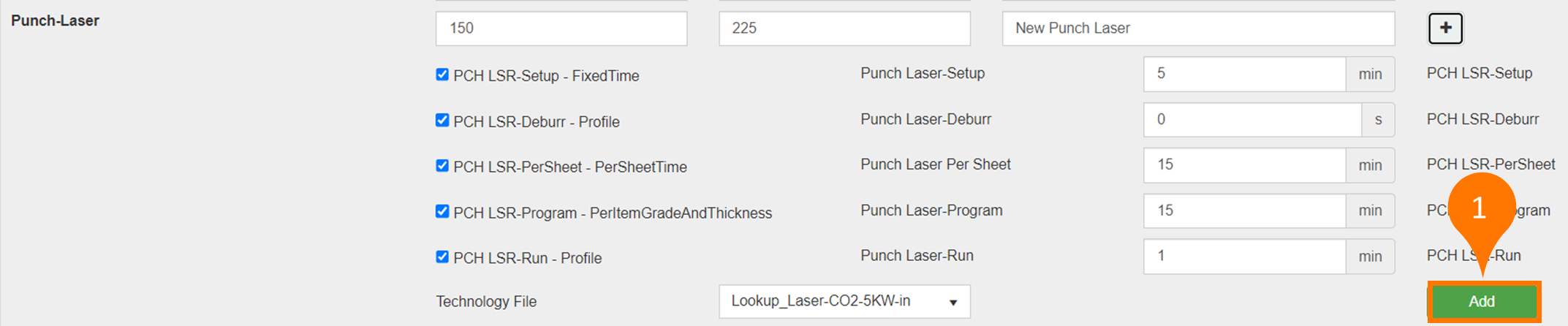

6. Select "Add."
Following these steps, you can successfully set up a punch laser combination machine operation in SecturaFAB. Please refer to our resource center to learn more about punch laser combo machines and how they can be applied to your quote.
