Are you often working with bent, straight or various orientations of tubes? SecturaFAB's capabilities in linear CAD files ensure that measurements are accurate and reliable, improving the overall precision of your quotes and estimates. Let’s explore!
Uploading Linear CAD Files

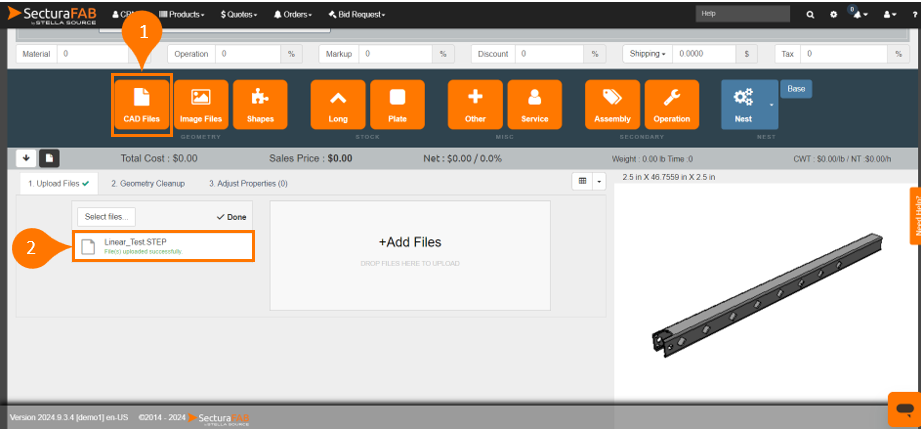

1. Choose “CAD Files” from the global action bar and upload your linear file

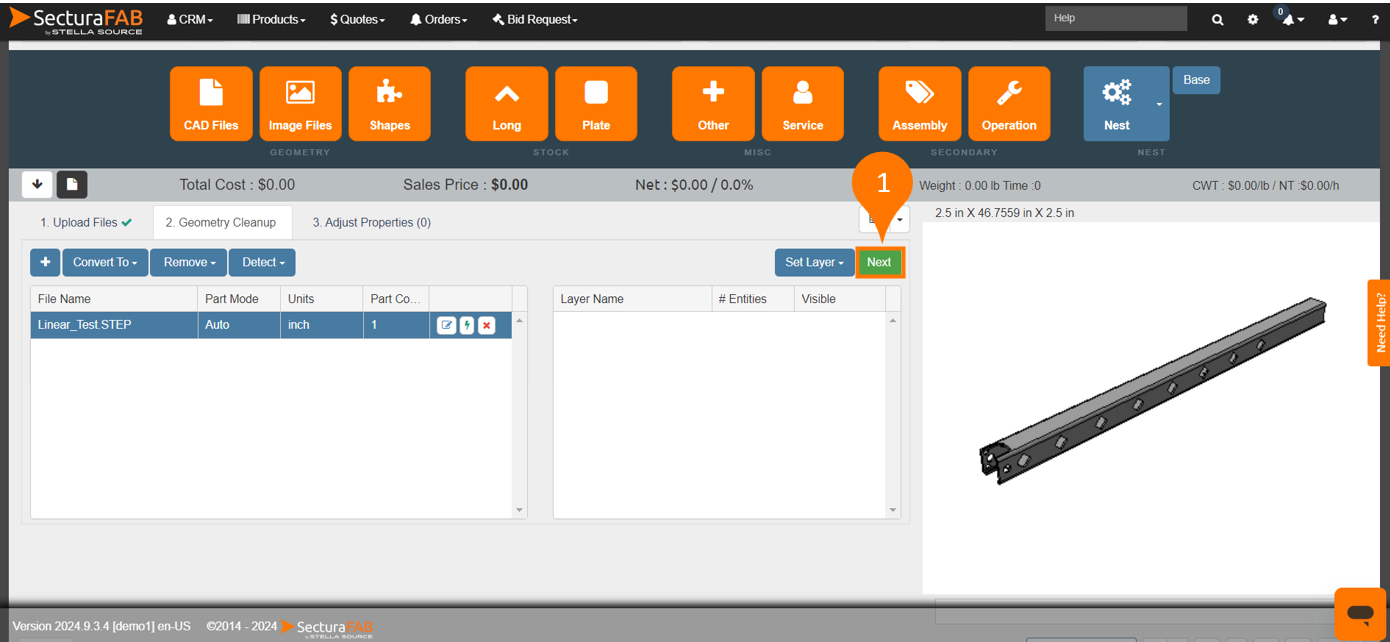

2. Select “Next” to navigate to the Adjust Properties step.

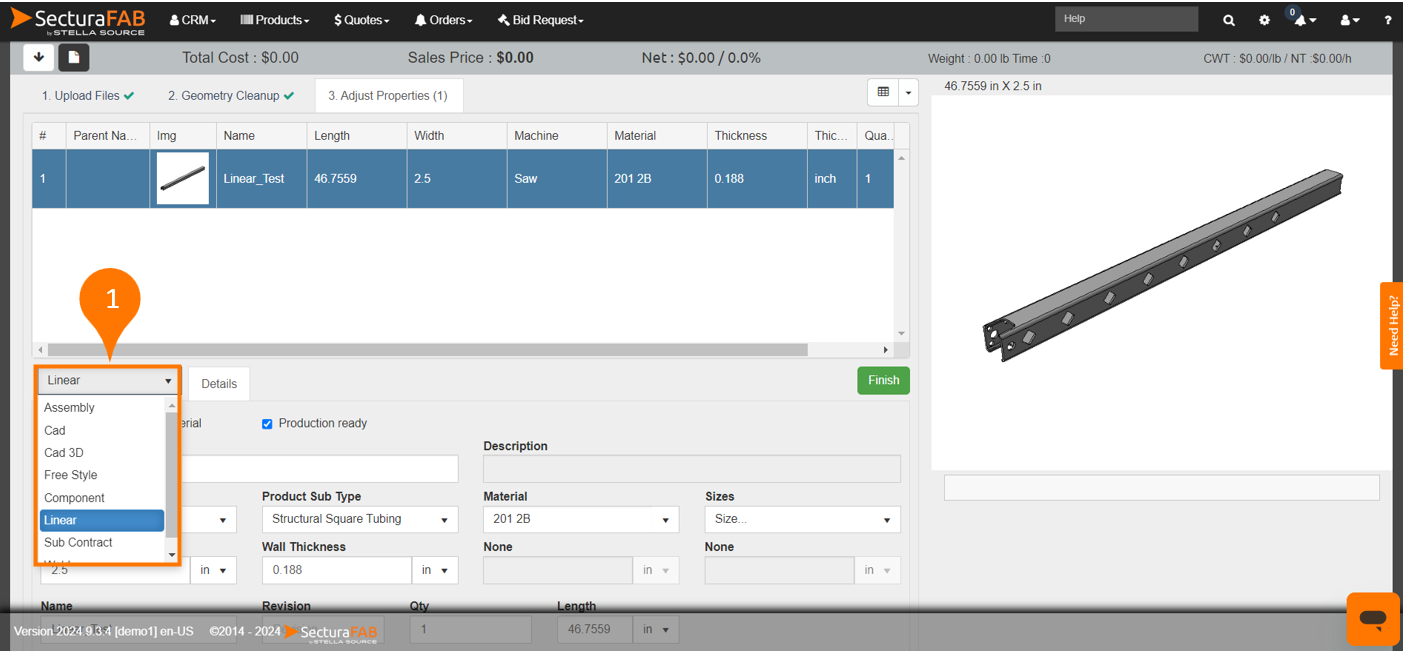

3. Select “Linear” from the available options. To learn more about the adjust properties step explore our resource center.
4. Adjust parameters such as product type, material, machine and material costs. Select “Finish” to add it to your quote. Discover the key benefits of how SecturaFAB accurately identifies length with centerline technology.
Key Benefits
Enhanced Length Detection for Rotated Parts:

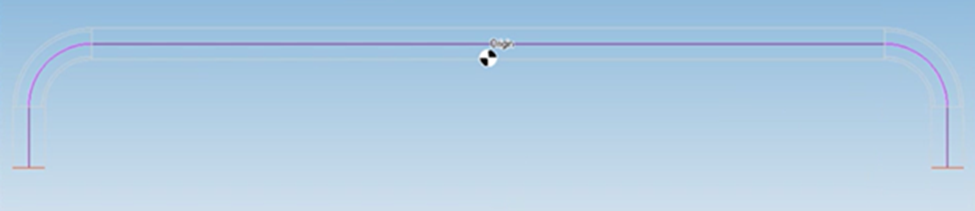

- New Centerline Technology: We've implemented advanced centerline technology that accurately calculates the length of linear parts, even when they are drawn at a rotated orientation. This enhancement ensures that the true length of the geometry is measured, providing precise measurements for all linear parts, regardless of their orientation.
Accurate Measurement for Bent Tubes:

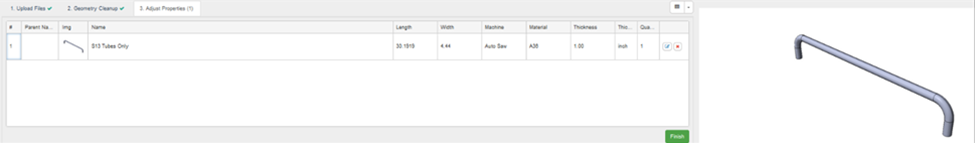

- Extended Accuracy: The new centerline technology also applies to bent tubes, a feature that was previously unavailable. This improvement guarantees that both straight and bent tubes are measured correctly, enhancing the overall accuracy of your quotes and estimates.
