Streamline how you create and manage materials and products in SecturaFAB. Are you stocking any new types of material? Do you need to add a new product? SecturaFAB offers manual options or an integration with your ERP to automate this process. Let's explore how each one works. Begin by watching the video below and follow the guide.

Creating New Materials

Add Costs

Define Thickness Map

Creating Products

Creating New Material

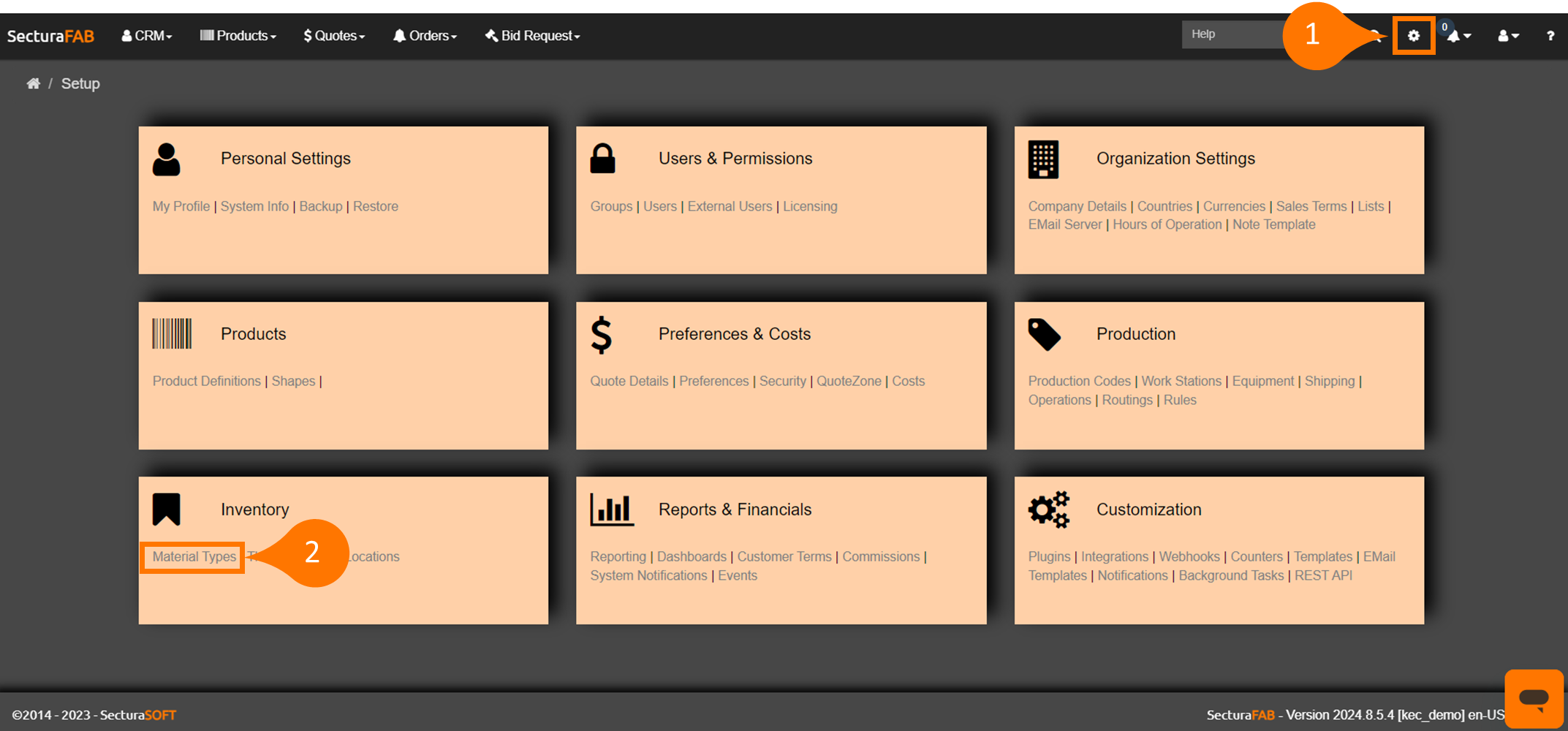

1. Navigate to "Material Types" within the "Inventory" settings.

2. Select "Add" to create a new material.

Manage Material New 2.png

Let’s create a new stainless-steel material. First, let’s define the available options:

a. Material – The material grade will also be used as the name.

b. Group –The relevant material group. Select from the dropdown or type in your own.

c. Product Type – The type of product associated with this material. The options include:

- - All
  - Bar
  - Linear
  - Pipe
  - Plate
  - Structural
  - Tube

d. Group Code – A group tag that can be associated with the material.

e. Density – The density of the material, this is used to calculate the weight of items if no product is assigned to the item.

f. Remark – An internal remark or comment.

Now that we have defined the options, let’s create the material. The required fields for any new material are:

Material
Group
Product Type
Density

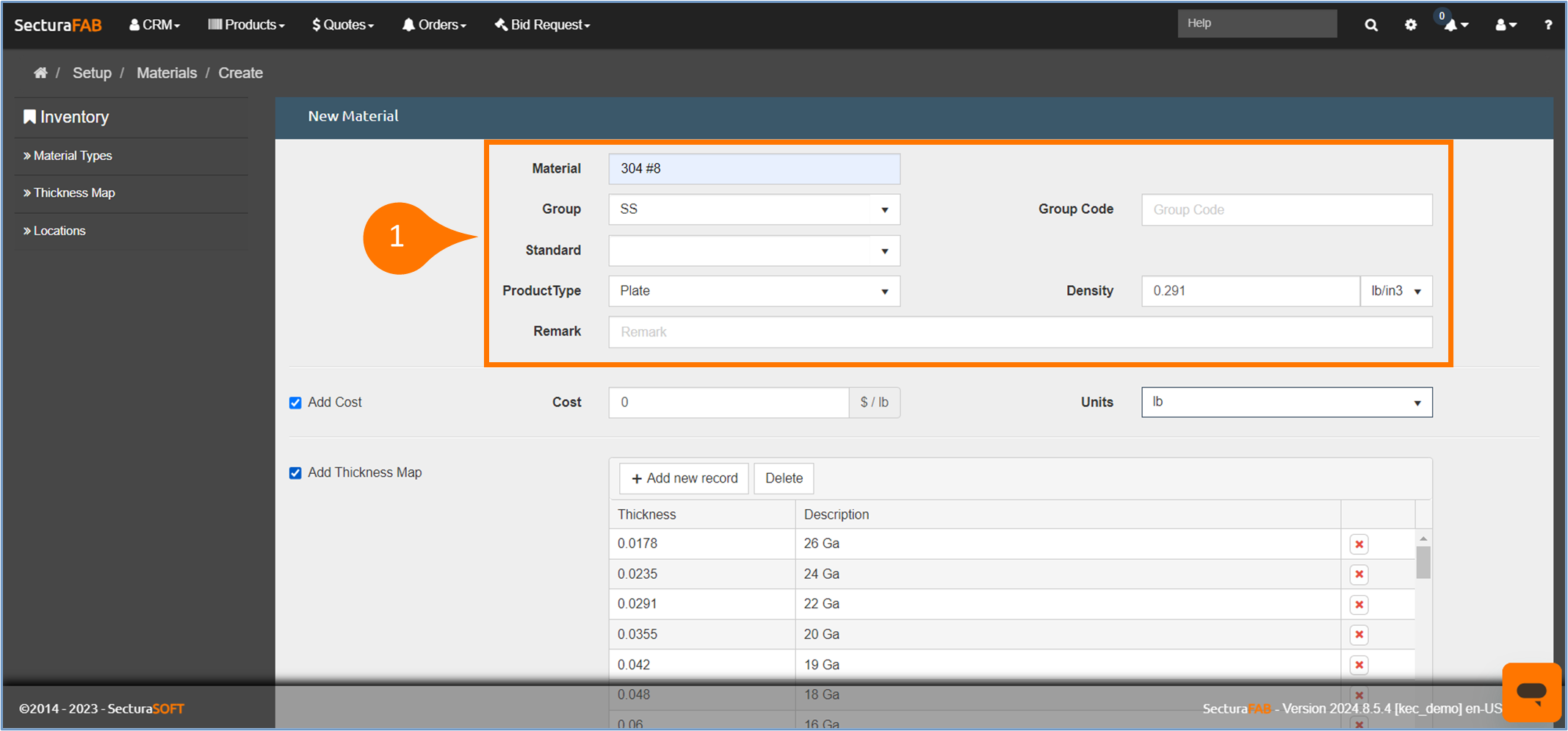

For this example, the material information is as follows:

Material – 304 #8
Group – SS
Product Type – Plate
Density – 0.291

Products 4.png

Add Costs

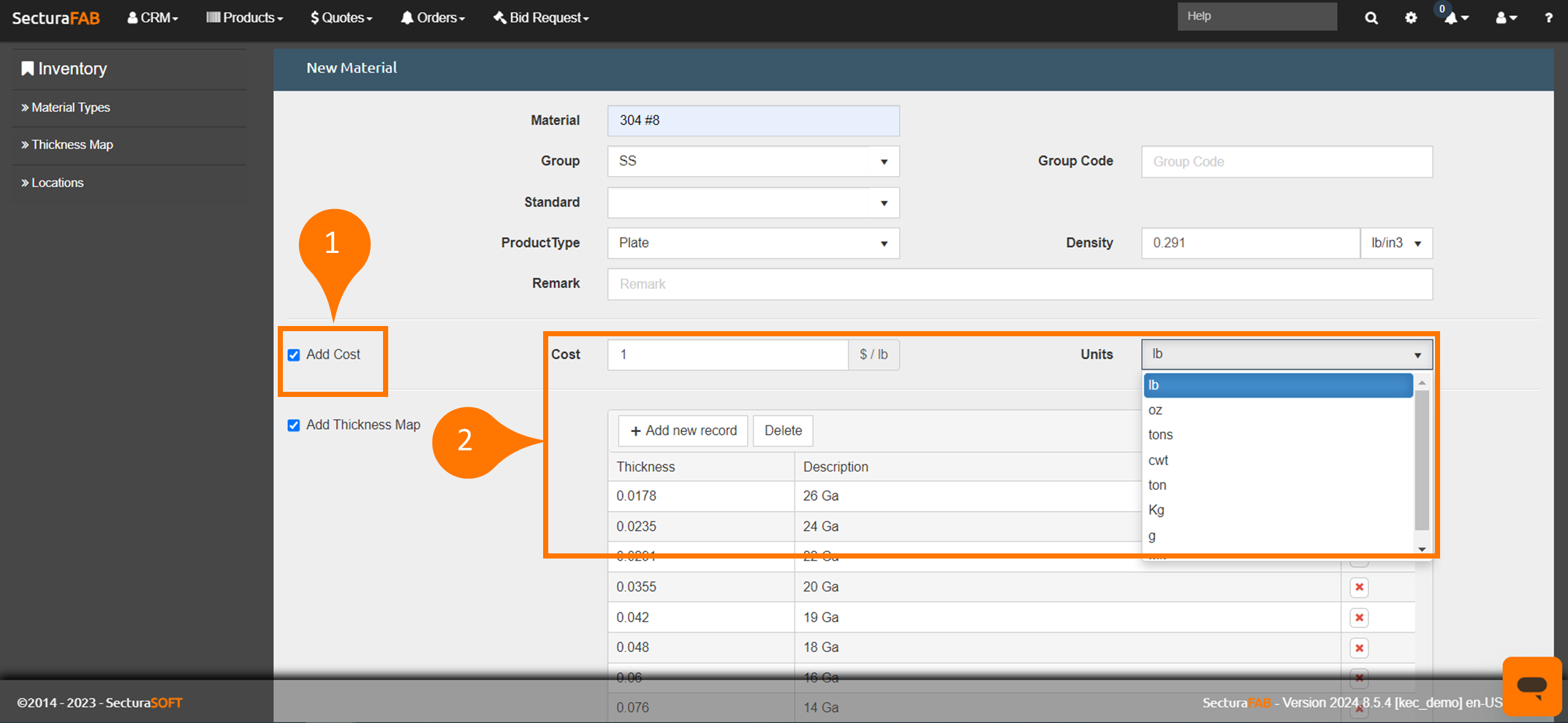

You can quickly add a cost to this new material by selecting the “Add Cost” box. Enter the cost and select a unit from the “Units” dropdown. Learn more about creating and editing costs in our resource center.

Products 5.png

Define Thickness Map

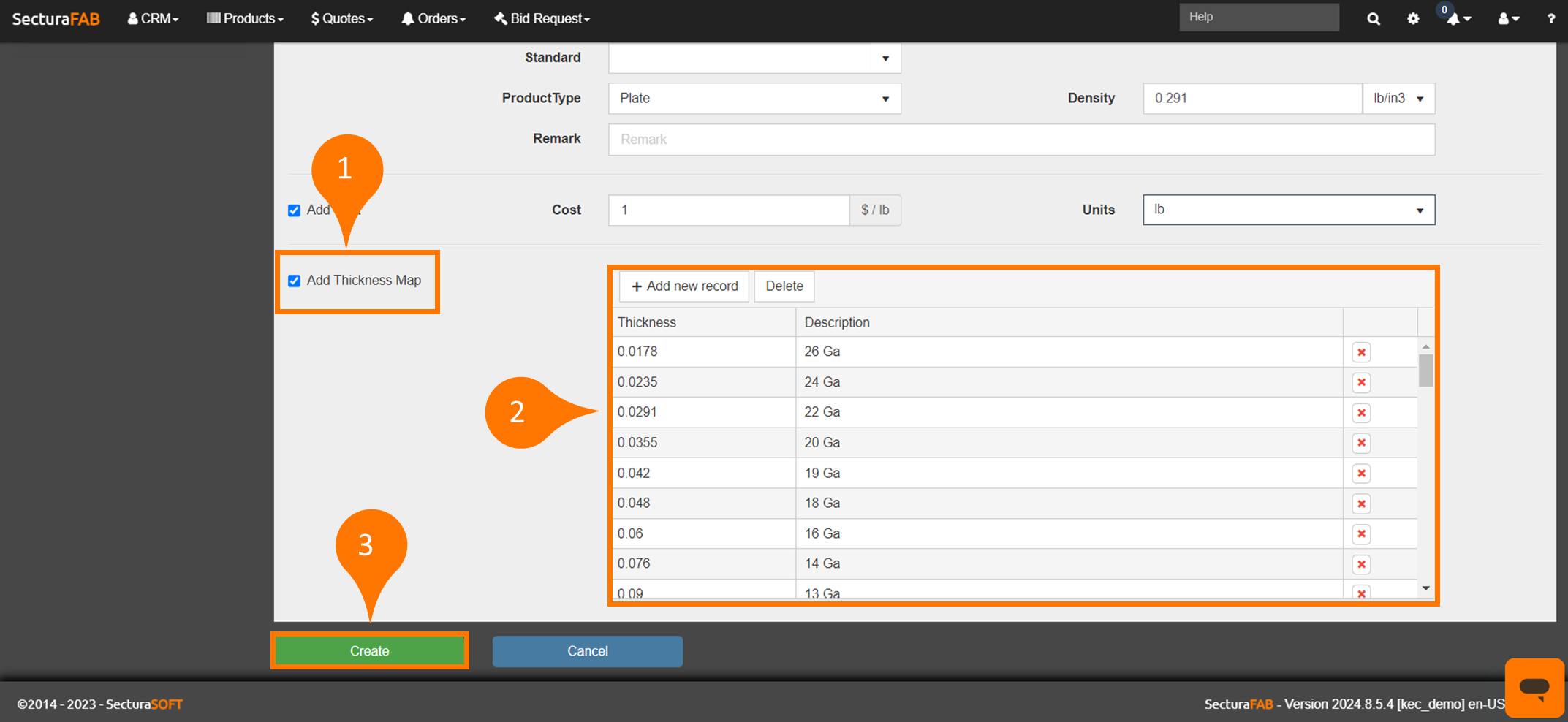

The thickness map defines the list of thicknesses available for a material grade or material group. You can edit the thickness map of new material by selecting the “Add Thickness Map” box.

Add or delete a thickness by selecting the command options or select “x” to remove a thickness from the thickness map. Finally, select “Create.”

Products 6.png

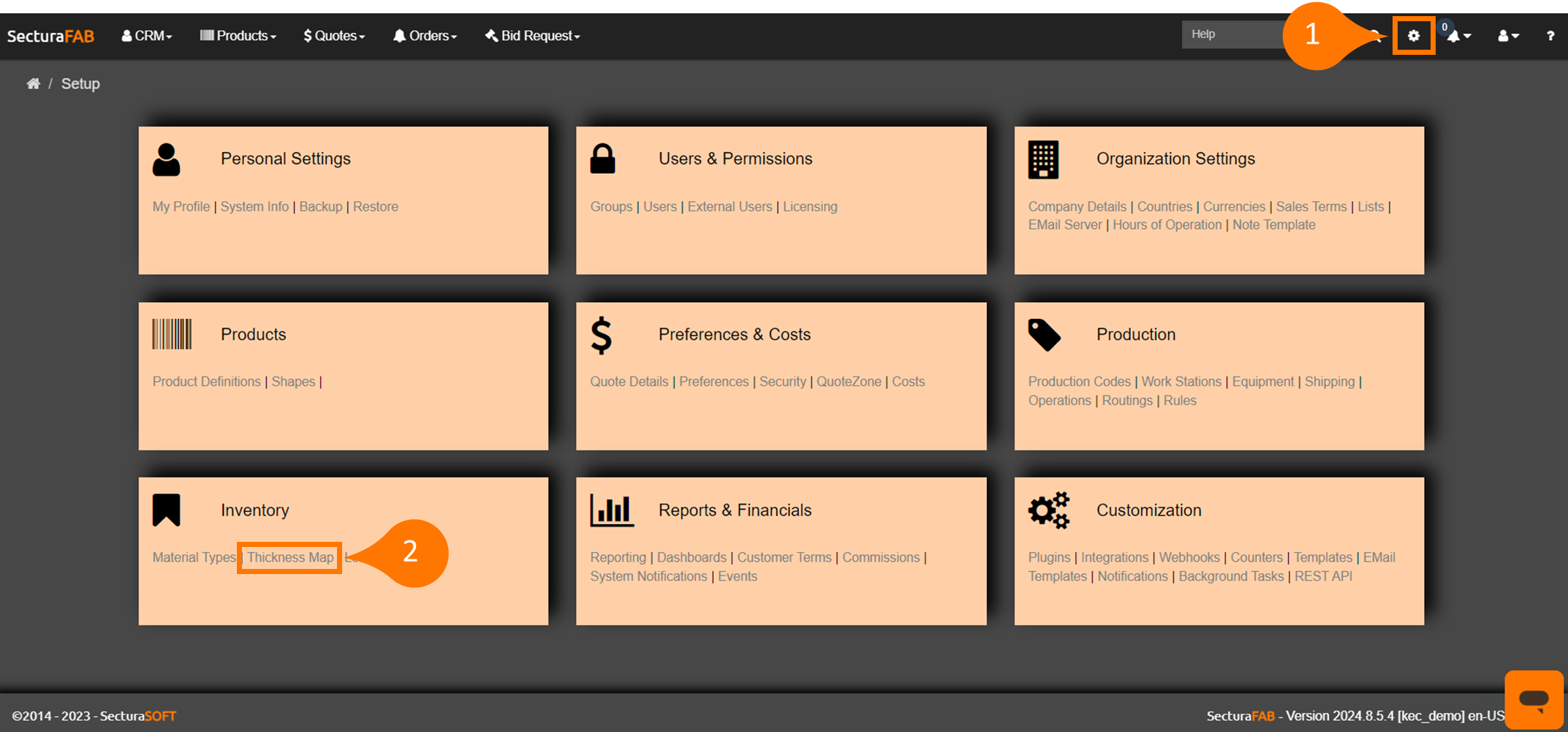

Alternatively, you can adjust the default thickness map by navigating to “Thickness Map” within the “Inventory” settings.

Products 7.png

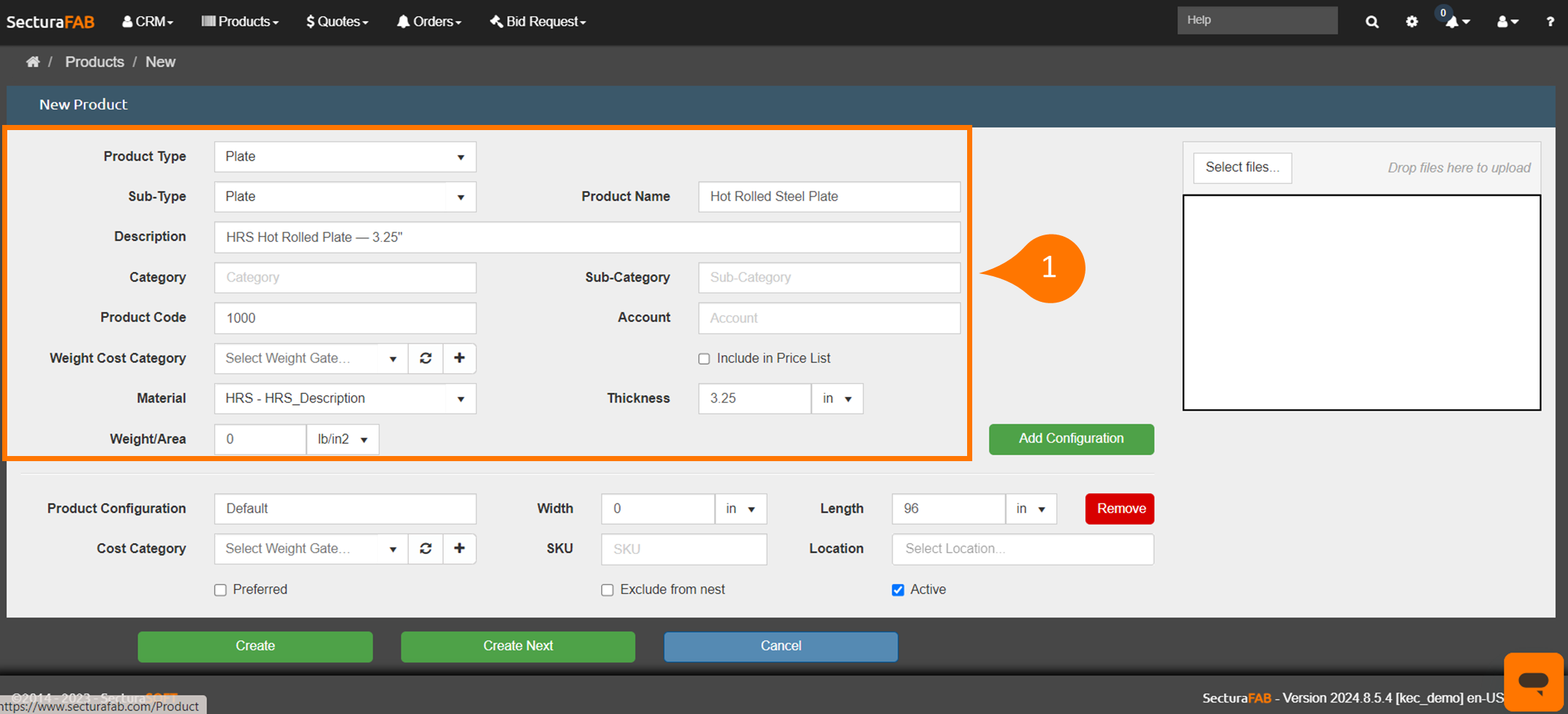

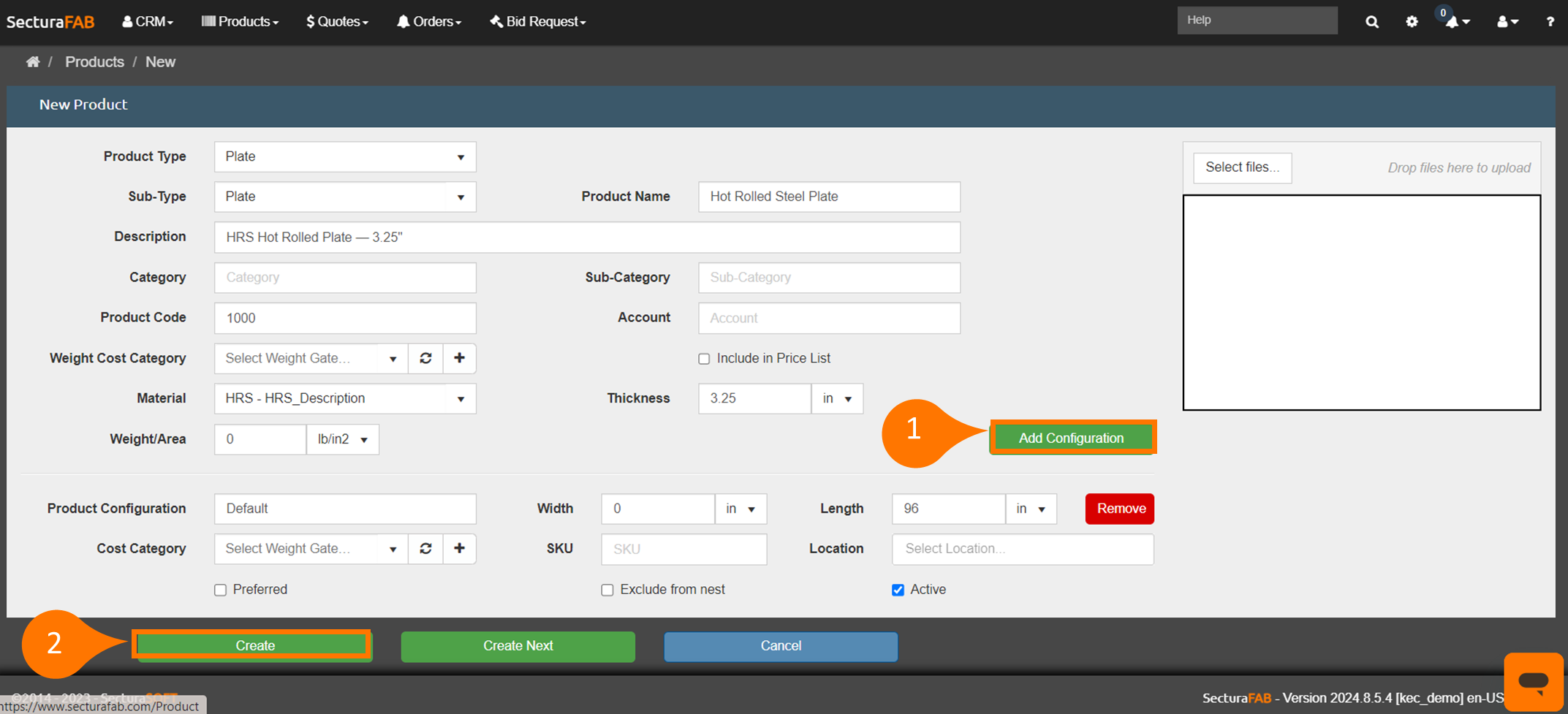

Creating Products

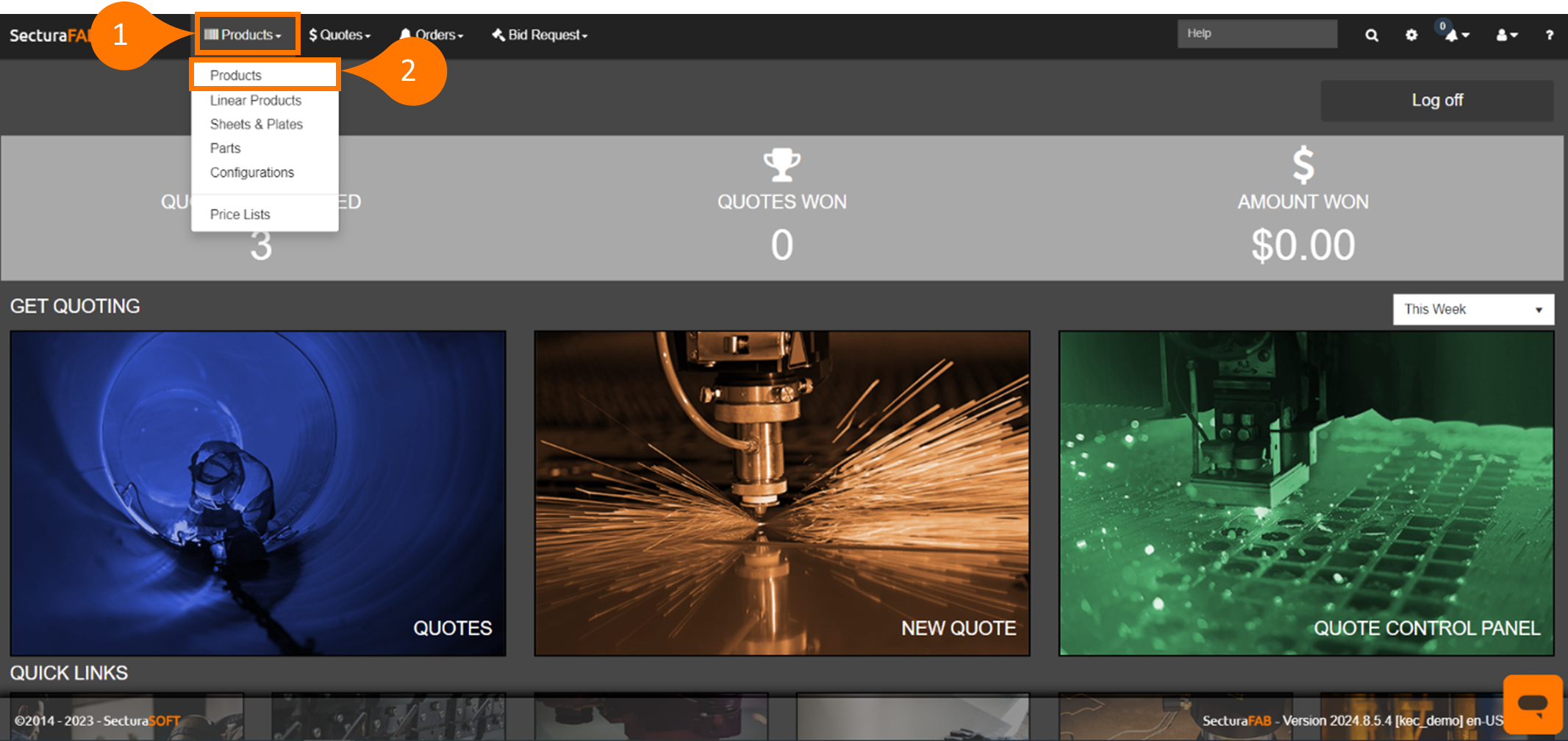

Now, let’s create a product. Open the “Products” dropdown on the SecturaFAB homepage. Then, choose “Products” from the list.

Products 7.png

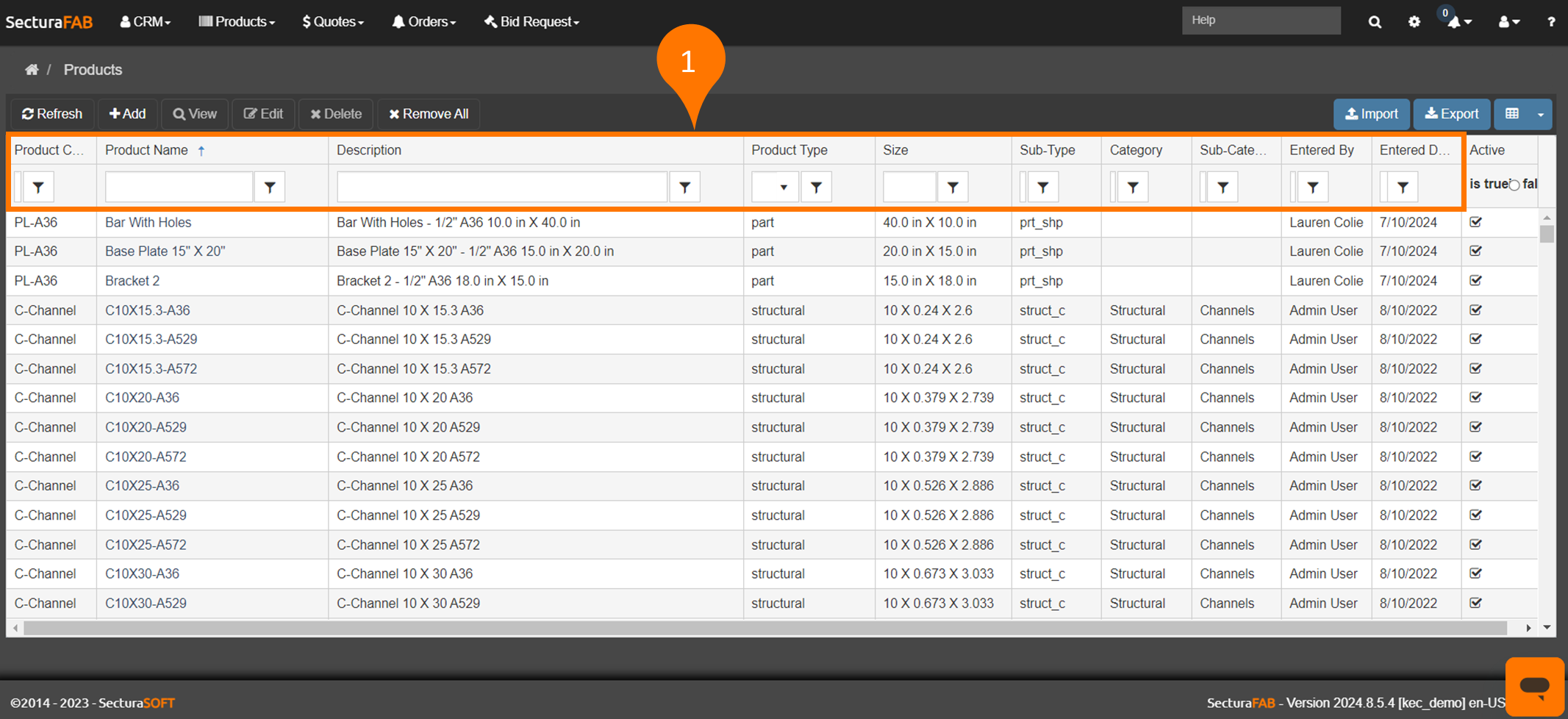

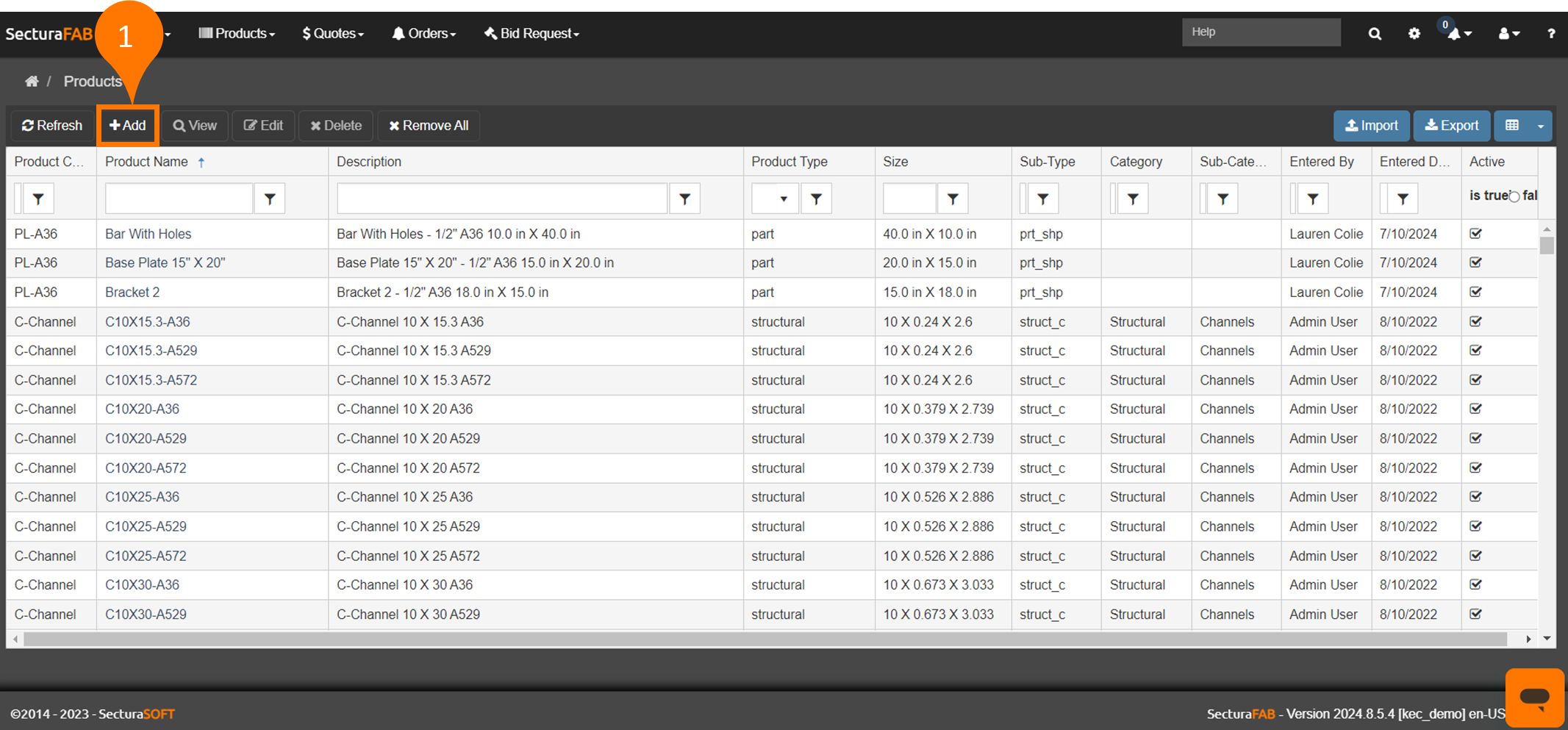

The Products tab shows a complete list of all the products available. Filter through the products using the filter options or searching for a specific part in any search bar.

Products 8.png
